Descriere

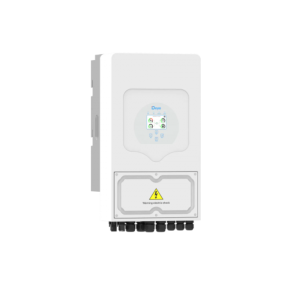

Invertor monofazat hibrid DEYE SUN-8K-SG01LP1-EU (8kW)
SUN-7.6/8K-SG01LP1-EU | 8kW | Monofazat | 2 MPPT | Invertor hibrid | Baterie LV acceptata
Invertorul hibrid SUN 7.6/8K-SG, este potrivit pentru uz rezidențial si comercial usor, maximizand rata de autoconsum de energie solara si crescand impedanța energetica. In timpul zilei, sistemul fotovoltaic genereaza energie electrica care va fi furnizată initial sarcinilor. Apoi, excesul de energie va încarca bateria prin SUN 7.6/8K-SG. In cele din urma, energia stocata poate fi eliberata atunci cand sarcinile o solicita. Bateria poate fi incarcata si de generatorul diesel pentru a asigura alimentarea neintrerupta in caz de intrerupere a retelei.Este echipat cu port RS485/CAN pentru comunicarea cu bateria.
- LCD tactil colorat, grad de protecție IP65
- Cuplare AC pentru modernizarea sistemului solar existent
- Max. 16 bucati paralele pentru on-grid și off-grid
- Suporta mai multe baterii in paralel
- Curent max. de incarcare/descarcare de 190A
- 6 perioade de timp pentru incarcarea/descarcarea bateriei
- Suporta stocarea energiei de la generator extern
Platforma de monitorizare inteligenta
Datorita platformei de monitorizare inteligenta, invertoarele din seria completă Deye accepta oprirea de la distanta imediata atunci cand are loc un accident. Setarea parametrilor și actualizarea FW de la distanta, ceea ce faciliteaza operarea si operarea instalatiei fotovoltaice.
| Model | SUN-7.6K-SG01LP1-EU | SUN-8K-SG01LP1-EU |
| Battery Input Data | ||
| Battery Type | Lead-acid or Lithium-ion | |
| Battery Voltage Range(V) | 40-60 | |
| Max.Charging Current(A) | 190 | 190 |
| Max.Discharging Current(A) | 190 | 190 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | |
| Number of battery input | 1 | |
| PV String Input Data | ||
Max. PV Input Power (W) | 9880 | 10400 |
Max. PV Input Voltage (V | 500 | |
| Start-up Voltage（V） | 125 | |
| MPPT Voltage Range（V） | 150-425 | |
Rated PV Input Voltage (V) | 370 | |
| Max Input Short-Circuit Current（A） | 34+34 | |
| Max Operating PV Input Current（A） | 26+26 | |
| No.of MPP Trackers/No.of String Per MPP Tracker | 2/2+2 | |
| AC Input/Output Data | ||
| Rated AC Input/Output Active Power（W） | 7600 | 8000 |
| Max AC Input/Output Apparent Power （VA） | 8360 | 8800 |
| Peak Power (off-grid)（W） | 2 times of rated power,10s | |
| Rated AC Input/Output Current（A） | 34.5/33 | 36.4/34.8 |
| Max AC Input/Output Current（A） | 38/36.3 | 40/38.3 |
| Max Continuous AC Passthrough (grid to load)（A） | 50 | |
| Rated Input/Output Voltage/Range(V) | 220/230 0.85Un-1.1Un | |
| Grid Connection Form | L+N+PE | |
Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | |
| Rated Input/Output Grid Frequency/Range(Hz) | 50/45-55, 60/55-65 | |
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | |
| DC Injection Current | <0.5%ln | |
| Efficiency | ||
| Max Efficiency | 97.6% | |
| Euro Efficiency | 96.5% | |
| MPPT Efficiency | ＞99% | |
| Equipment Protection | ||
Integrated | DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level | |
| Surge Protection Level | TYPE II(DC),TYPE II(AC) | |
| Interface | ||
| Communication Interface | RS485/RS232/CAN | |
Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | |
| General Data | ||
| Operating Temperature Range | -40 to +60℃, >45℃ Derating | |
| Permissible Ambient Humidity | 0~100% | |
| Permissible Altitude | 2000m | |
| Noise | ＜30 dB(A) | |
| Ingress Protection(IP) Rating | IP 65 | |
| Inverter Topology | Non-Isolated | |
| Over Voltage Category | OVC II(DC),OVC IV(AC) | |
| Cabinet size（W*H*D）[mm] | 420×670×233（Excluding connectors and brackets） | |
| Weight[kg] | 30 | |
| Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | |
| Type Of Cooling | Intelligent air cooling | |
| Grid Regulation | IEC 61727, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | |
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |
